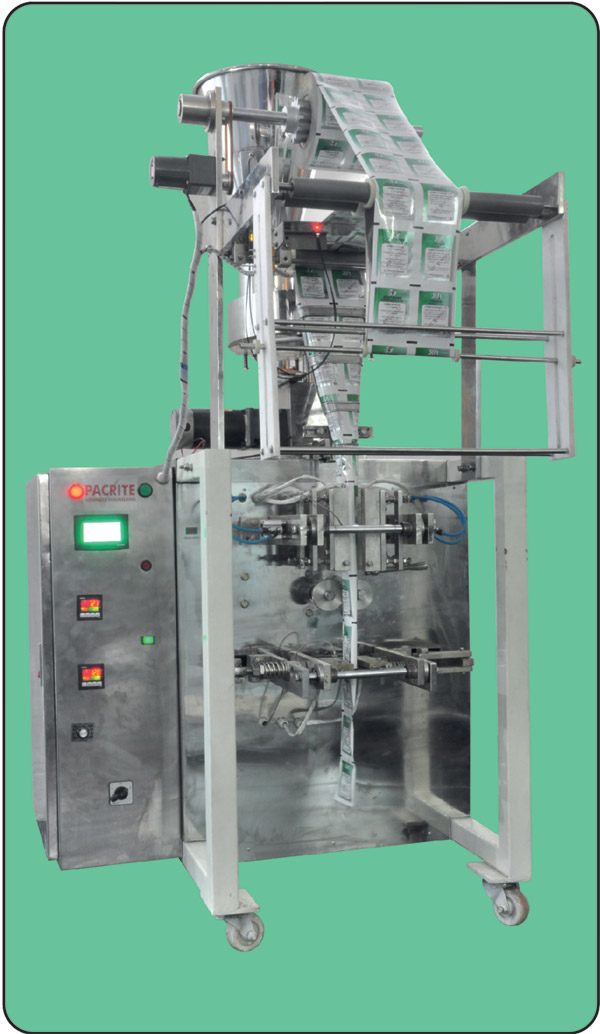

PACRITE PR SERIES MACHINE FEATURES
- All PR Series Machines are Controlled by State of The Art Programming Done on Omron PLCS.
- The Programs Can be Custom Designed for Our Clients Specific Requirements.
- PLC OMRON
- User Friendly Control and Operation System
- Adjustable Disc/Pump Setting for Easy Adjustment of Weight/Volume
- Easy Bag Length Adjustment
- One Step Speed Adjustment
- Easy Former Replacement for Additional Size
- Intermittent Sealing Operation for Perfect Seal
- Low Maintenance Design
- Avant Garde Design Makes PR Series Machines Functional and Allows Delivery Very Low Down Time
OPTIONAL EXTRAS
- Additional Size Change Parts Former/ Cups
- Date and Batch Coding Device (Ribbon Printer)
- Date Coding Device (Emboss)
- Nitrogen Flushing
- Stainless Steel Covering for Corrosion Protection
- Full Safety Cover, No Moving Parts Access
- Product Contamination Cover
- Extra large Hopper
- Hopper Level Sensor
- Batch Cutting Device
- Pouch Counter
- Emergency Shutdown
|
Specification |
| 01 | Film Width (Min-Max) | 50-250mm |
| 02 | Bag Length (Min-Max) | 50-180mm |
| 03 | Speed Bags/ Minute | 30-50 Pouch/Min ** |
| 04 | Power | 3 KW |
| 05 | Machine Dimension : LxWxH (cm) | 225x140x225cm |
| 06 | Machine Weight (Kg) | 300 KG |
NB: This Machine Requires Compressed Air For Pneumatic Operation.** Speed : Depending on the Flow Rate of the Product to be Packed
Product to Pack : Free Flowing Powders, Pharmaceutical Powders, Pesticides, Veterinary Powders,Granules,Drink Powder, Detergent Powder, Saline,
Tea, Coffee, Cereals, Hair Dye, Gul, Zarda,Pop Corn, Corn Flower, Herbal Powder, Seeds Etc.
